• FILE – selecting a file placed in the server folder C:\Program Files\SL NEO Media Platform\run\files (displaying a list of files from this folder).
• URL – selecting a file by the network path at the local or network disk, or a logo file from the SL NEO database (the corresponding database must be specified in Program Channel settings).
• LIVE  - receiving video with or without an alpha-channel from the external/internal signal source.
• NONE – stream source for the window not defined.

• FILE – selecting a file placed in the server folder C:\Program Files\SL NEO Media Platform\run\files (displaying a list of files from this folder).
• URL – selecting a file by the network path at the local or network disk, or a logo file from the SL NEO database (the corresponding database must be specified in Program Channel settings).
• LIVE  - receiving video with or without an alpha-channel from the external/internal signal source.
• NONE – stream source for the layer not defined.

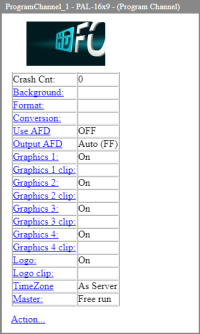

• As Server– use the server time zone (playlist time will coincide with the server clock time)
• UTC XX – setting the playlist time zone shift relative to UTC+0: used for convenience of working with playlist at channels with satellite broadcasting, allowing for displaying the target region time in the playlist.

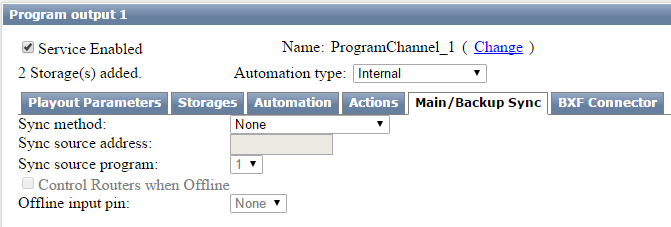

• Free run – no synchronization
• One time synchronization
• Continious synchronization (only for Sync method=Online Continious)
• Offline synchronization (only Sync method=Online Continious)

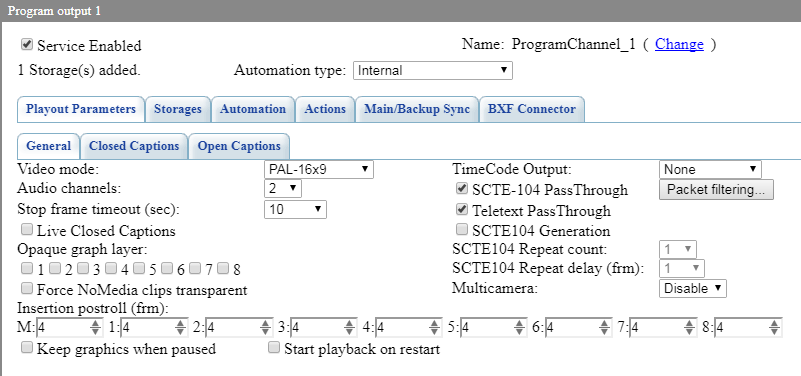

• None – no time code output
• PassThrough – time code value is taken from the source signal in Background
• Clip – output of the clip time code
• DayTime – current time output

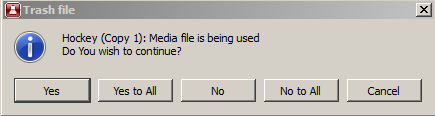

• Yes – delete the first blocked clip
• Yes to All – delete all blocked clips
• No – skip one clip
• No to All – skip all blocked clips and delete the rest of clips
• Cancel – cancel deletion

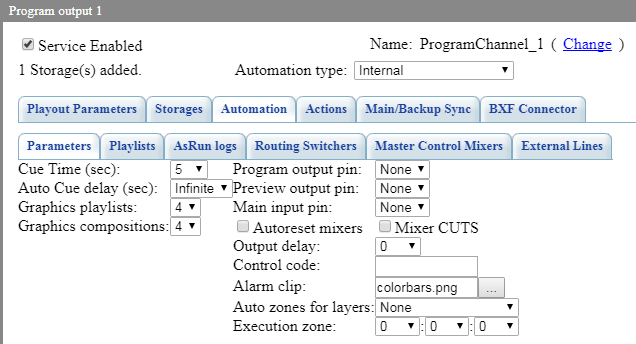

• None – Playlist zoning turned off
• Main – Function is active for the main playlist
• Main & 1st Graphics – Function is active for the main playlist and first graphic playlist

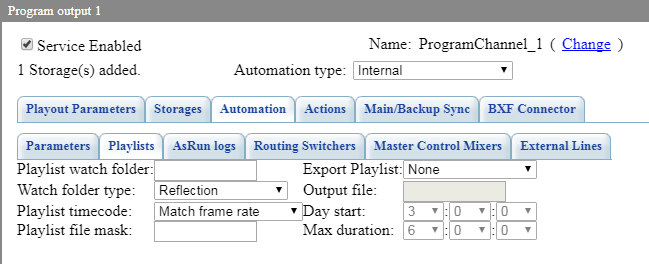

• Upload once – uploads a playlist once at the moment specified in the Playlist upload time field. The uploaded playlist is added to the end of the program channel current playlist.
• Clear/Upload once – clears the program channel current playlist and uploads the playlist file.
• Reflection – tracks changes in the playlist file and updates the program channel playlist according to them.

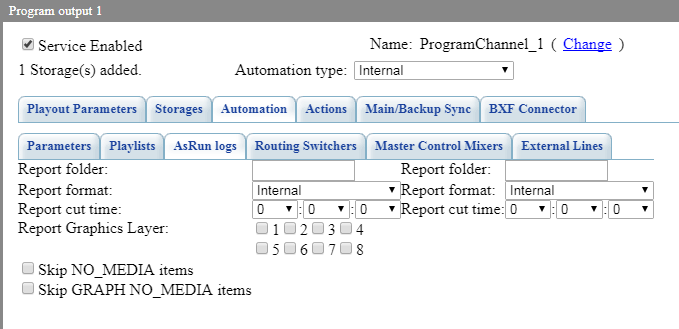

Example of a log file string:

2013-08-17	23:07:18.41	START	251289	00:00:20:00	MAIN				NoChange	NoChange	NoChange	NoChange	251289

Event format:

DATE TIME EVENT TITLE DURATION PLAYER TAPE ITEM_ID COMMENT KEY1 KEY2 KEY3 KEY4 URI MEDIA_STATUS GPI_V1 GPI_V2 GPI_V3 GPI_V4 GPI_V5 GPI_V6 GPI_V7 GPI_V8 ONAIR GROUP

Message format:

DATE TIME SPACE_MESSAGE

• Date – date in the “DD/MM/YYYY” format.
• TIME – time in the HH:MM:SS:FF format.
• SPACE_MESSAGE – a random message, must start with a space.

Template Example #1

log_template.txt

#---------------------------
# This is a sample template for Custom AsRun log rules
#
# In addition to usually supported playlist variables $(var), the following variables can be used
#
# $(job_year) $(job_mon) $(job_day) $(job_hour) $(job_min) $(job_sec) $(job_frm) - The actual time the related media started
# $(cur_year) $(cur_mon) $(cur_day) $(cur_hour) $(cur_min) $(cur_sec) $(cur_frm) - The actual time this event occurred
# $(dur_hour) $(dur_min) $(dur_sec) $(dur_frm) - The actual duration of the time the related media started to this event occurring
# $(on_air) - Airing status
# $(media_state) - Media state
# $(event) - Logging event that occurred
#
# The header only supports $(cur_year) $(cur_mon) $(cur_day) $(cur_hour) $(cur_min) $(cur_sec)
#
# After the variable name, arguments can be added to modify how the variable will be displayed
# $(event) -> $(event,ralign,width:10)
# width - Set strict width for text to be displayed
# ralign - Align to right of text block, needs to have width set
# As well, variable values can be mapped to different values by using =
# $(gpi1_mode,on=ENABLED,off=DISABLED,none=), if gpi1_mode is 'on' 'ENABLED' will be logged, if 'off' 'DISABLED' will be logged, if 'none' then no characters will be written
##
# The template for graphics events starts with the '^' symbol in the beginng of the line. Same parameter as for the main event
# and the same rules apply
#
#----------------------------
!
!   This will be the header text for this log, it will only be written when this log is opened, ! is used to set header lines
!   Today's date: $(cur_year)-$(cur_mon)-$(cur_day)
!
$(event,width:8) - $(cur_hour):$(cur_min):$(cur_sec): $(uri) was affected, media duration in frames $(duration,ralign,width:12)
           Started: $(ev_year)-$(ev_mon)-$(ev_day) $(ev_hour):$(ev_min):$(ev_sec)
^$(event,width:8) - $(ev_hour):$(ev_min):$(ev_sec): $(uri)

Template Example #2

log_template2.txt

$(ev_year)$(ev_mon)$(ev_day)$(player,width:8)$(clip_hour):$(clip_min):$(clip_sec):$(clip_frm)$(uri,width:22)$(type,width:1,type1=C,type2=T,type3=X,type4=K)$(title,width:60)                        $(comment,width:66)$(ev_hour):$(ev_min):$(ev_sec):$(ev_frm)$(dur_hour):$(dur_min):$(dur_sec):$(dur_frm)          $(gpi1_mode,on=E,off= ,none= )$(gpi2_mode,on=E,off= ,none= )$(gpi3_mode,on=E,off= ,none= )$(gpi4_mode,on=E,off= ,none= )$(gpi5_mode,on=E,off= ,none= )$(gpi6_mode,on=E,off= ,none= )$(gpi7_mode,on=E,off= ,none= )$(gpi8_mode,on=E,off= ,none= )         $(start_type,manual=-,hard_start=T,auto=N)

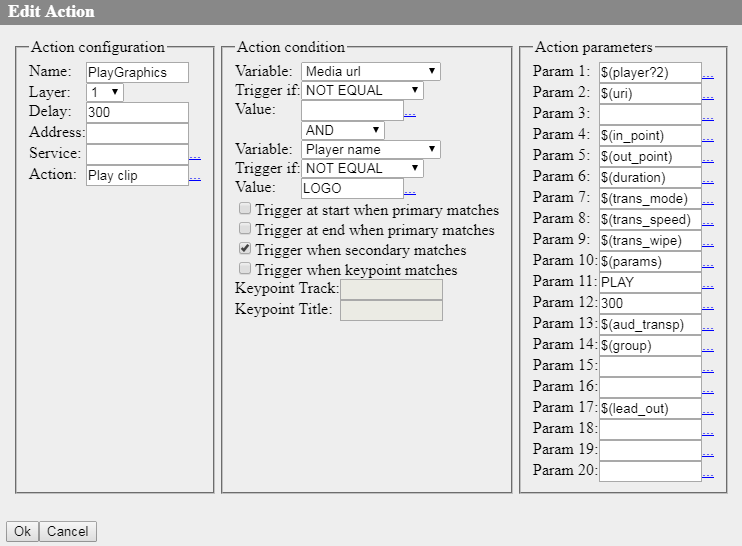

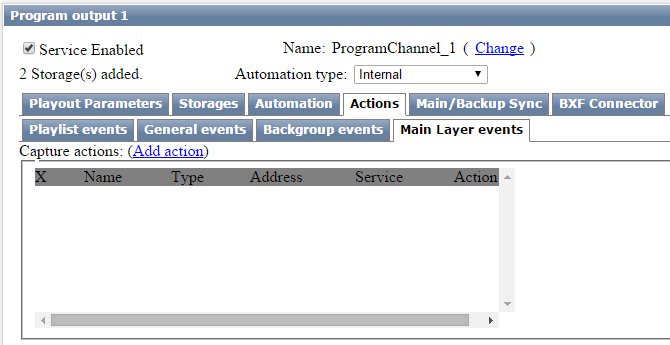

• EQUAL – the condition is true, if the Variable column value completely coincides with the Value field (case matters). Example: (Skylark and Skylark = true), (Skylark and skylark = false), (Skylark and Server = false).
• NOT EQUAL – the condition is true, if the Variable column value does not coincide with the Value field (case matters). Example: (Skylark and Skylark = false), (Skylark and skylark = true), (Skylark and Server = true).
• CONTAINS – the condition is true, if the Variable column value contains a substring specified in the Value field (case matters). Example: (Skylark and kylar = true), (Skylark and sky = false).
• NOT CONTAINS – the condition is true, if the Variable column value does not contain a substring specified in the Value field (case matters). Example: (Skylark and kylar = false), (Skylark and sky = true).

• AND – logical “and”. Action condition=true, if both conditions are equal to “true”.
• OR – logical “or”. Action condition=true, if one or both conditions are equal to “true”.

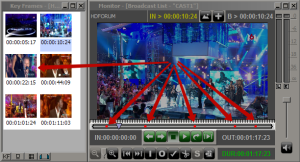

• Keypoint Track – specifying the track value (standard values: General, Segments, Segment End, Secondary Event, Cue Point). An empty field coincides with any track.
• Keypoint Title – an empty field coincides with Keyframe Title value.
